Omron-healthcare ELITE 7300W User Manual

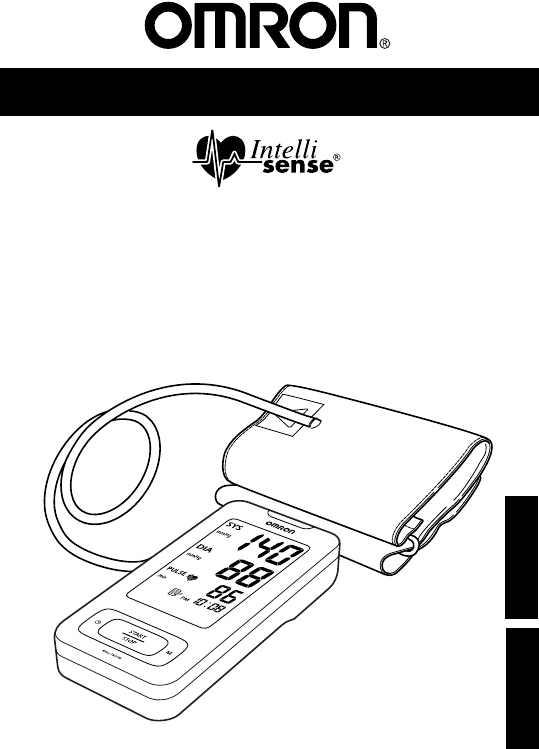

Women’s Advanced Automatic Blood Pressure Monitorwith Two CuffsModel Elite 7300WINSTRUCTION MANUALESPAÑOLENGLISH HEM-7300 e-s r2.qxd 11/2/07 4:50 PM

10UNIT DISPLAYMovement Error SymbolLow Battery IndicatorDeflation SymbolHeartbeat Symbol/Hypertension IndicatorIrregular Heartbeat SymbolAverage Value

11IRREGULAR HEARTBEAT SYMBOL ()When the monitor detects an irregular rhythm two or more times duringthe measurement, the Irregular Heartbeat Symbol (

HEARTBEAT SYMBOL/HYPERTENSION INDICATOR ()TAKING A MEASUREMENTThe Heartbeat Symbol ( ) flashes on the display during themeasurement. The Heartbeat Sym

The American Heart Association recommends the following guideline forupper limit of normal for home blood pressure readings:AHA Home Guideline for Upp

1. Press the indicator on the battery coverand slide the cover off in the direction ofthe arrow.2. Install 4 “AAA” size batteries so the +(positive)

BATTERY REPLACEMENTWhen the Low Battery Indicator appears on the display screen, turn themonitor off and remove all the batteries. Replace with four n

16Set the monitor to the current date and time before taking a measurementfor the first time. If the date and time are not set correctly, themeasureme

SETTING THE DATE AND TIME2. SETTING THE YEARThe year can be set between 2008 and 2030.When the display reaches 2030, it will return to2008.Press the M

184. SETTING THE DAYPress the Memory button ( ) to advance by increments of one day.Press the Date/Time Setting button ( ) to set the current day.The

RESETTING THE DATE AND TIMETo adjust the date or time after it has been setup when you first use the unit. Start with the monitor in the off position.

2Before Using the MonitorIntroduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3Safety In

The Medication Reminder Alarm can be set to sound twice a day to alertthe user to take a medication. The Medication Reminder Alarm can beset for eithe

2.SETTING ON OR OFFPress the Memory button ( ) to select on.Press the Date/Time Setting button ( ).The hour flashes on the display.NOTE: Press the Mem

4.SETTING THE MINUTEPress the Memory button ( ) to advance by increments of oneminute.Press the Date/Time Setting button ( ) to set the minute.The Med

6.TO TURN THE MONITOR OFFIf the date and time are correct, press the START/STOP button to turnthe monitor off.To change the date and time refer to “Re

CAUTIONRead all of the information in the instruction manual and any otherliterature in the box before operating the unit.CAUTIONThis device is intend

2. Fit the looped Cuff Guide on your upperarm.3. Cuff Guide shows your correct cuff.Use the cuff with same colored sticker.APPLYING THE CUFF ON THE LE

262. Remove tight-fitting clothing from your upper left arm.3. Apply the cuff to your left upper arm so the blue arrow is centered onthe inside of you

27APPLYING THE ARM CUFFAPPLYING THE CUFF ON THE RIGHTARMWhen taking a measurement using the right arm use this instruction for Step 3 on page 26.Apply

1. Sit in a chair with your feet flat on the floor. Place your left arm on atable so the cuff is level with your heart.2. Press the START/STOP button.

3. When the measurement is complete, the arm cuffcompletely deflates. Your blood pressure andpulse rate are displayed. 4. Press the START/STOP button

3Thank you for purchasing the Omron®Elite 7300W IntelliSense®Women’s Advanced Automatic Blood Pressure Monitor.INTRODUCTIONFill in for future referenc

USING THE GUEST MODEThe monitor is designed to take measurements and store themeasurement values in the memory for one person. The monitor can alsobe

Every time you complete a measurement the monitor stores the bloodpressure and pulse rate in the memory.The monitor automatically stores up to 84 sets

2. Press the Memory button ( ) to display the most recent set ofmeasurement values on the screen. The values are displayed from themost recent to the

TO DELETE ALLVALUES STORED IN THE MEMORYYou cannot partially delete values stored in the memory.1. Press the Memory button ( ) to turn the monitor on.

34To keep your digital blood pressure monitor in the best condition andprotect the unit from damage, follow the directions listed below:Keep the monit

Use the unit consistent with the instruction provided in this manual.CAUTIONChanges or modification not approved by Omron Healthcare willvoid the user

Contact your OMRONdistributor or Customer Servicesas mentioned on the package.A malfunction hasoccured.36SYMBOL CAUSE CORRECTIONRemove the arm cuff. R

37ERROR INDICATORS AND TROUBLESHOOTING TIPSPROBLEM CAUSES AND SOLUTIONSNo power.No display appears on the unit.Replace all four batteries with newones

38FCC STATEMENTNOTE:POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A. only)This product has been tested and found to comply with the limits for

WARRANTY39Your Omron®Elite 7300W IntelliSense®Women’s Advanced Automatic BloodPressure Monitor, excluding the arm cuffs, is warranted to be free from

4To assure the correct use of the product basic safety measures shouldalways be followed including the warnings and cautions listed in thisinstruction

40Model: Elite 7300WDisplay: LCD Digital DisplayMeasurement Range: Pressure: 0 to 299 mmHg, Pulse: 40 to 180/min.Accuracy/Calibration: Pressure: ±3mmH

Memory: Up to 84 readingsContents: Main Unit, Standard and Large Arm Cuffs, Instruction Manual, 4 “AAA” batteries, Stylish Zipper Case, Quick Guide, W

Manufactured by OMRON HEALTHCAREMade in ChinaDistributed by:OMRON HEALTHCARE, INC.1200 Lakeside DriveBannockburn, Illinois 60015www.omronhealthcare.co

OPERATING THE DEVICE (continued)This device is intended for use in measuring blood pressure and pulserate in the adult population. Do not use this dev

CARE AND MAINTENANCEDo not subject the monitor to strong shocks, such as dropping the uniton the floor.Do not submerge the device or any of the compon

7BEFORE TAKING A MEASUREMENTTo ensure a reliable reading follow these recommendations:1. Avoid eating, drinking alcohol, smoking, exercising, and bath

8KNOW YOUR UNITMain Unit:Operating InstructionsBattery CompartmentMemory Button ( ) DisplayDate/Time SettingButton ( ) Air JackStart/Stop ButtonHEM-73

KNOW YOUR UNIT9Components:Arm CuffsAir TubeAir Plug (Connects to Air Jack)Stylish Zipper CaseFour “AAA” BatteriesInstruction ManualWomen’s Advanced Au
